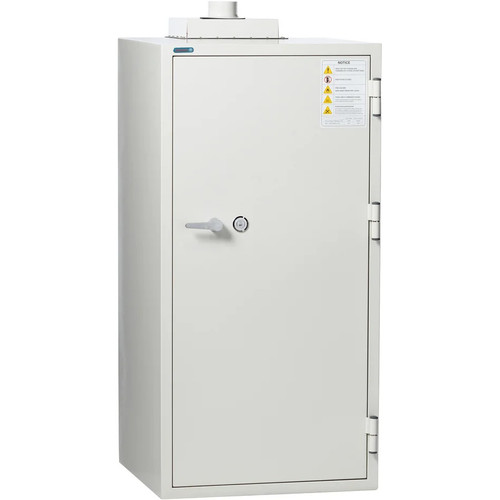

Phoenix Battery Commander BSS6103 Lithium-Ion Battery Charging Cabinet, 24 Outlets, 8.65 cu. ft.

The Phoenix Battery Commander BSS6103 Lithium-Ion Battery Charging Cabinet is a larger-capacity battery storage and charging cabinet designed for organizations that need more vertical storage, more charging access, and better internal organization for growing lithium-ion battery programs.

With 3 shelves, 4 usable charging levels, 4 UL-listed internal PDUs, 24 built-in outlets, and 8.65 cu. ft. of storage capacity, the BSS6103 is a strong choice for maintenance departments, warehouses, public works departments, school districts, laboratories, telecom rooms, fleet operations, contractors, municipalities, and industrial facilities.

This cabinet helps move battery charging away from open benches, carts, shelves, desks, and ordinary utility cabinets. It provides a dedicated location for storing and charging lithium-ion batteries used in power tools, radios, scanners, body cameras, drones, flashlights, lab equipment, maintenance tools, and other rechargeable battery-powered devices.

Key Product Details

• Model: BSS6103
• Series: Phoenix Battery Commander
• Product Type: Lithium-ion battery charging cabinet
• Exterior Dimensions: 57"H x 27.25"W x 28"D
• Interior Dimensions: 47.25"H x 20"W x 15.75"D
• Storage Capacity: 8.65 cu. ft.
• Weight: 835 lbs.
• Outlets: 24 built-in outlets
• PDUs: 4 UL-listed internal PDUs
• Shelves: 3 shelves included
• Charging Levels: 4 usable levels
• Capacity Per Level: 2,500 Wh
• Total Capacity: 10,000 Wh
• Lock: Key lock with multipoint locking system
• Vent: External ventilation connection port
• Color: White
• Warranty: 3 years

Battery Storage and Charging Use

The Phoenix Battery Commander BSS6103 is designed for facilities that need more storage and charging capacity than smaller mid-height models, while still using a narrow single-door cabinet footprint. The three included shelves create four usable charging levels, making it easier to separate chargers, battery packs, tools, radios, scanners, and portable equipment.

This model is useful when a department needs to charge multiple batteries at the same time while keeping batteries and chargers in one locked, dedicated location. It is especially helpful for organizations that rely on rechargeable batteries every day and want a more organized alternative to scattered charging stations throughout the building.

Safety and Storage Features

• 24 built-in outlets support higher-volume charging inside the cabinet.
• 4 UL-listed PDUs provide internal power distribution for 110V lithium-ion battery charging.
• 3 shelves included create 4 organized charging levels.
• 2,500 Wh per level helps guide organized battery loading across the cabinet.
• 10,000 Wh total capacity supports larger battery charging programs in a single cabinet footprint.
• Insulated double-wall steel construction provides a more controlled cabinet environment than ordinary storage cabinets.
• Multipoint locking system helps keep the cabinet secured during use.
• Key lock helps control access to batteries, chargers, and stored equipment.
• External ventilation connection allows connection to external ducting where required by the facility or safety plan.
• White finish provides a clean professional appearance for facility, school, lab, and industrial environments.

Who Should Choose the BSS6103?

The BSS6103 is best for facilities that need more charging capacity than smaller Battery Commander models, but do not need the full height or outlet capacity of the BSS6104 or the extra-wide BSS6105. It is a strong middle-to-large option for departments with growing lithium-ion battery storage and charging needs.

• Warehouses and distribution centers: Store and charge scanner batteries, radio batteries, cordless tool batteries, and maintenance equipment batteries.
• Schools and universities: Support technology departments, labs, robotics programs, maintenance teams, classroom devices, and rechargeable equipment.
• Public works and municipalities: Organize tool batteries, radios, emergency equipment, traffic control devices, and department maintenance batteries.
• Police, fire, and emergency management: Store and charge body cameras, radios, drones, flashlights, tactical devices, and field equipment.
• Industrial facilities and utilities: Manage battery charging for tools, testing equipment, portable electronics, and facility operations.

Specifications

Choosing the Right Battery Commander Model

The BSS6103 is a strong choice when your facility needs a higher-capacity Battery Commander cabinet with 24 outlets and 4 charging levels, but does not need the 30-outlet BSS6104 or the extra-wide 40-outlet BSS6105.

If your battery volume is lower or floor space is limited, a smaller Battery Commander model may be a better fit. If your facility needs maximum outlet capacity or wider shelf space for larger chargers and battery packs, consider the BSS6104 or BSS6105. Compare outlet count, shelf count, cabinet size, battery volume, available floor space, and delivery access before ordering.

Delivery Information

This cabinet ships by freight and weighs 835 lbs. Before ordering, please confirm your receiving hours, truck access, doorway clearance, elevator access, floor load concerns, and final placement location. Because of the size and weight of this cabinet, delivery planning is important.

Delivery Options

• Loading Dock or Curbside Delivery: Best for commercial locations with a loading dock, forklift, or accessible curbside freight area. The cabinet is delivered on a pallet, and the customer is responsible for moving it from the delivery point.
• Inside Doorway or Garage Delivery: Available as an upgrade for qualifying locations. The cabinet is moved just inside the first accessible doorway, lobby, receiving area, or garage. The cabinet remains packaged and on the pallet.
• Full-Service Set-in-Place Delivery*: Available as an upgrade for qualifying locations with ground-floor or elevator access. This service includes uncartoning, placement, and removal of packaging materials.

Step Limit: Inside delivery and full-service delivery may be limited by cabinet weight, doorway clearance, turning radius, elevator access, floor conditions, and site safety. If your delivery requires stairs, tight turns, long carries, restricted truck access, floor protection, a certificate of insurance, a special appointment request, or other unusual site conditions, please contact us before placing your order.

Residential Deliveries: Residential delivery may require review before shipment. This item is a heavy freight shipment and is best suited for commercial facilities with proper receiving access. If full-service residential delivery is needed, we may need to confirm truck access, driveway access, doorway clearance, and a safe delivery path before shipment.

Please review doorway width, hallway turns, elevator access, floor load concerns, and the final placement location before selecting inside delivery or full-service delivery. If you are unsure which delivery option is right for your location, contact us before ordering.

*Full-Service Set-in-Place Delivery is available for qualifying locations. If full-service delivery is not available at your location, we will contact you before shipment and advise on the most viable delivery solution.

Frequently Asked Questions

What is the Phoenix BSS6103 used for?

The BSS6103 is used to store and charge lithium-ion batteries inside a dedicated battery charging cabinet. It is designed for higher-volume battery programs that need 24 outlets and organized internal shelf space.

How many outlets does the BSS6103 include?

The BSS6103 includes 24 built-in outlets powered by 4 UL-listed internal PDUs.

Does the BSS6103 include shelves?

Yes. The cabinet includes 3 shelves, creating 4 usable charging levels.

Is ventilation required?

The cabinet includes an external ventilation connection port. Ventilation requirements depend on your facility, application, local requirements, and safety plan.
