Phoenix Battery Commander BSS6104 Lithium-Ion Battery Charging Cabinet, 30 Outlets, 10.84 cu. ft.
Write a Review
Phoenix Safe

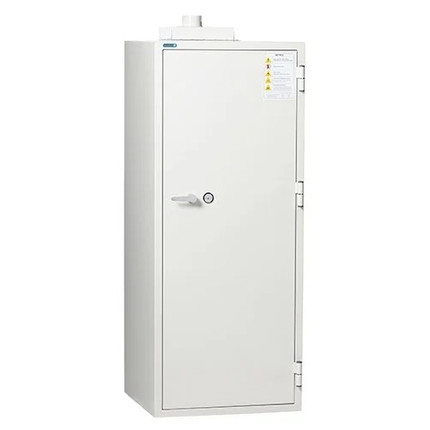

Phoenix Battery Commander BSS6104 Lithium-Ion Battery Charging Cabinet, 30 Outlets, 10.84 cu. ft.
- Brand
- Phoenix Safe
- SKU:
- BSS6104
- Availability:
- In Stock
- Safe Size:
- 10.84 cu ft
- Number of Shelves:
- 4 Shelves
- Series:
- Battery Commander
- Product Type:
- Battery Charging Safe
Phoenix BSS6104 Battery Commander Charging Cabinet
The Phoenix Battery Commander BSS6104 is a full-height, five-level cabinet for organizations that need high charging capacity while retaining the narrower 27.25-inch cabinet width. It includes 30 charging outlets, 5 UL-listed power distribution units, 4 shelves, and 5 usable charging levels.
With a maximum battery capacity of 12,500 Wh, the BSS6104 is an excellent fit for warehouses, universities, municipalities, utilities, emergency services, fleet operations, laboratories, contractors, and other battery-dependent facilities. Phoenix designed the cabinet to help minimize fire damage by limiting the direct transfer of heat and flames to the exterior during a thermal-runaway event or battery explosion while charging.
Exterior Dimensions
- Height: 68.75″
- Width: 27.25″
- Depth: 28″
Interior Dimensions
- Height: 59.25″
- Width: 20″
- Depth: 15.75″
Specifications
| Model | BSS6104 |
|---|---|
| Series | Phoenix Battery Commander |
| Product Type | Lithium-ion battery storage and charging cabinet |
| Exterior Dimensions | H: 68.75″ W: 27.25″ D: 28″ |
| Interior Dimensions | H: 59.25″ W: 20″ D: 15.75″ |
| Storage Capacity | 10.84 cu. ft. |
| Approximate Weight | 900 lbs. |
| Charging Outlets | 30 |
| Power Distribution | 5 UL-listed internal PDUs |
| Shelves | 4 shelves included |
| Usable Charging Levels | 5 |
| Maximum Shelf Load | 220 lbs. per shelf |
| Battery Capacity Per Level | 2,500 Wh maximum |
| Total Battery Capacity | 12,500 Wh maximum |
| Locking | Key lock |
| Color | White |
Why Choose the BSS6104?
- High-capacity charging: Thirty outlets and five organized charging levels in a narrow single-door footprint.
- Centralized charging: Keeps batteries, chargers, and power connections together instead of spread across open benches and shelves.
- Flexible organization: Four included shelves create five charging levels for different battery and charger sizes.
- Controlled access: A key lock helps restrict access to batteries and charging equipment.
- High-capacity storage: Supports up to 2,500 Wh per level and 12,500 Wh total when used within all manufacturer limits.
- Professional facility solution: Designed for organizations where rechargeable batteries are part of daily operations.
Common Applications
Use the BSS6104 to organize approved batteries and chargers for power tools, radios, scanners, body cameras, drones, flashlights, field devices, laboratory equipment, maintenance equipment, and other rechargeable lithium-ion devices.
- Warehouses and distribution centers
- Schools, colleges, and universities
- Public works and municipal departments
- Police, fire, and emergency services
- Utilities, fleet operations, and industrial facilities
- Laboratories, contractors, and maintenance departments
Delivery and Site Access
At approximately 900 lbs., the BSS6104 ships by freight and requires delivery planning. Confirm truck access, receiving hours, doorway and hallway clearances, turning radius, elevator dimensions and capacity, floor conditions, and the final placement location before shipment.
- Full-Service Set-in-Place Delivery: Included for qualifying commercial locations. Service generally includes uncartoning, movement to the approved final location, placement, and removal of packaging materials.
- Loading-Dock Delivery: Available for facilities equipped to unload and move the palletized cabinet. Select the corresponding product option for any applicable delivery credit.
- Curbside Delivery: Available for qualifying locations that can safely receive and move the palletized cabinet. Select the corresponding product option for any applicable delivery credit.
Stairs, restricted truck access, tight turns, long carries, floor protection, certificates of insurance, residential locations, or other unusual site conditions may require additional review. Contact Advanced Filing Concepts before ordering if you are unsure about delivery access.
Planning and Operating Notes
The BSS6104 is designed for professional facility use. During site planning, allow room for the doors to open fully, keep the top ventilation outlet clear, and maintain at least 6 inches of clearance behind the cabinet.
The Phoenix user manual calls for the ventilation outlet to connect to an independent outdoor exhaust duct with airflow of at least 18 CFM. This should be incorporated into the facility plan with the appropriate ventilation, electrical, and fire-safety professionals.
Important charging, inspection, and emergency guidance
- Install the cabinet indoors on a level, firm surface in a well-ventilated area and away from flammable substances, high humidity, and extreme temperature changes.
- Keep the cabinet doors closed and locked while batteries are charging.
- Use certified chargers and manufacturer-recommended batteries, and follow the battery manufacturer's instructions.
- Use only the installed PDUs. Do not place extension cords or additional power sources inside the cabinet.
- Do not exceed the PDU rating, 2,500 Wh per level, 12,500 Wh total, or 220 lbs. per shelf.
- Do not stack batteries while charging or storing them.
- Internal and external cables must not be modified except by qualified professionals.
- Inspect the cabinet at least every six months for impact, deformation, damaged door seals, moisture, and ventilation problems.
- If the cabinet exterior becomes warm, internal noise is detected, or smoke is visible, do not open the doors; contact emergency services immediately.
- For long-term storage, Phoenix recommends approximately 40–60% battery charge, subject to the battery manufacturer's instructions.
Frequently Asked Questions
How many batteries can the BSS6104 hold?
Battery sizes and Wh ratings vary, so there is no universal battery-count limit. The cabinet provides 30 outlets and must remain within 2,500 Wh per level, 12,500 Wh total, 220 lbs. per shelf, and the rated electrical capacity of each PDU.
Does the cabinet include shelves and power outlets?
Yes. It includes four shelves, five usable charging levels, five UL-listed PDUs, and 30 outlets.
Does the BSS6104 need an outdoor ventilation connection?
Yes. Phoenix instructs users to connect the top outlet to an independent outdoor exhaust duct providing at least 18 CFM. Include this connection in your site plan before placing the cabinet into service.
Are extension cords or additional power strips permitted inside?
No. Phoenix instructs users to rely only on the installed PDUs and not place extension cords or other power sources inside the cabinet.
Helpful Resources
- Phoenix BSS Series User Manual - available from Advanced Filing Concepts
- Phoenix Battery Commander Data Sheet
- Phoenix Safe Full Catalog
- Shop All Lithium-Ion Battery Storage Cabinets
- Shop Phoenix Safe Products
Always follow the current Phoenix user manual, battery and charger manufacturer instructions, applicable codes, and your facility's safety plan. Specifications are subject to change.
