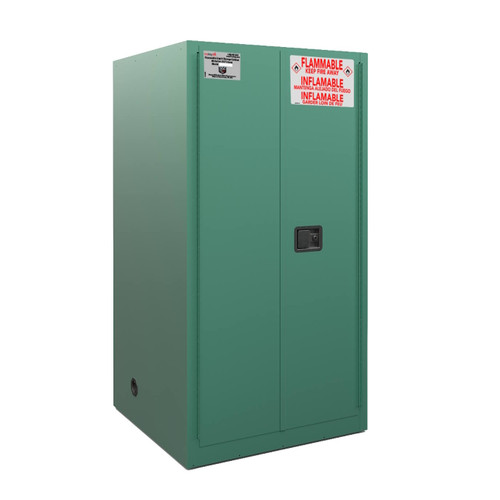

FireKing® 60-Gallon Flammable Safety Cabinet

Maximize hazardous-liquid storage when capacity is the priority. The FireKing 60-gallon safety cabinet provides a tall, deep interior for larger container inventories while its 34-inch cabinet width uses less wall frontage than the 45-gallon model.

Choose manual-close or automatic-close double doors and select the powder-coated color associated with the cabinet's intended application. Two adjustable galvanized-steel shelves hold up to 167 lbs. each, providing heavy-duty organization for compatible flammable liquids, combustibles, pesticides, corrosives, or laboratory chemicals.

High-Capacity Storage with a Deep Interior

The 60-gallon cabinet combines a 65-inch height with a 34-inch-square footprint. Its approximately 30.5-inch-wide by 30.8-inch-deep interior accommodates a greater volume of approved containers than FireKing's 30- and 45-gallon models. Before ordering, verify that the deeper cabinet will preserve required aisle and operating clearances.

Reinforced double-wall 18-gauge steel surrounds a 1.5-inch thermal air gap on the cabinet body and doors. A raised 2-inch leakproof sump helps contain incidental spills, while two flame arrestors with fire baffles and caps support safe cabinet operation. Additional components include a grounding lug, keyed cam lock, flush-mounted paddle handle, full-length piano hinges, and four galvanized leveling feet.

Five Colors for Easier Application Identification

Color coding helps personnel recognize the cabinet's planned storage application at a glance. It is not a substitute for a compatibility review. Check the current Safety Data Sheet for every substance and follow approved chemical-segregation procedures before placing materials inside the cabinet.

Manual-Close or Automatic-Close Doors

Manual-Close Configuration

Users must close and secure the two doors after retrieving or returning materials. This configuration generally provides the lower purchase price and may be used where facility policy and the applicable authority permit manual operation.

Automatic-Close Configuration

The doors return to the closed position automatically and incorporate a heat-responsive link. Automatic-close models—also called self-closing cabinets—should be selected when required by local code, state regulations, an insurer, facility standards, or the authority having jurisdiction.

60-Gallon Cabinet Specifications

When the 60-Gallon Model Makes Sense

• Largest capacity in the series: The 60-gallon configuration supports higher-volume storage programs and larger approved container inventories.
• Narrower wall frontage: At 34 inches wide, it occupies less linear wall space than the 43-inch-wide 30- and 45-gallon models.
• Deep usable storage: The 30.8-inch interior depth provides substantially more front-to-back capacity for approved containers.
• Heavier-duty shelving: Two adjustable shelves support up to 167 lbs. each, compared with 125 lbs. per shelf in the smaller models.
• Application-specific choices: Five colors and two door-closing configurations allow the product to be matched to facility procedures and code requirements.

Suitable Facility Applications

The 60-gallon cabinet is best considered where chemical inventory volume justifies its deeper footprint and the receiving route can accommodate a 346-lb fully assembled cabinet.

• Manufacturing plants and production departments
• Large maintenance and repair operations
• Industrial laboratories and testing facilities
• Automotive, aerospace, and equipment service areas
• Paint, finishing, and printing operations
• Warehouses and centralized chemical stockrooms
• Institutional and government facilities

Plan the Freight Route Before Ordering

This welded-steel cabinet weighs approximately 346 lbs. and ships fully assembled by LTL freight. Measure the receiving entrance, doorways, hallways, elevator openings, turning areas, and final placement space. Pay special attention to the 34-inch depth: the cabinet may require additional maneuvering room even though its front is narrower than the 45-gallon model. The shipping pallet and protective packaging will increase the delivered dimensions.

• Loading-Dock Delivery: Intended for facilities with equipment and personnel available to unload and move the pallet.
• Liftgate/Curbside Delivery: Places the pallet at ground level; movement into the building remains the customer's responsibility.
• Lobby or Garage Delivery: Moves the cabinet into the first accessible covered area when permitted by the carrier and site.
• Full-Service Delivery: May include movement to an approved final position and packaging removal when the route and site conditions allow.

Residential delivery, stairs, restricted access, narrow streets, tight corners, long carries, floor protection, or special equipment may create additional charges. Standard LTL service may use a 53-foot tractor-trailer. Contact Advanced Filing Concepts before ordering when access or placement is uncertain.

Preorder Safety and Site Checklist

Frequently Asked Questions

What are the exterior and interior dimensions?

The cabinet measures 34 inches wide, 34 inches deep, and 65 inches high. Interior dimensions are approximately 30.5 inches wide, 30.8 inches deep, and 60.3 inches high.

How much does the 60-gallon cabinet weigh?

Net cabinet weight is approximately 346 lbs. The pallet and shipping materials add additional delivery weight and size.

How is the 60-gallon model different from the 45-gallon cabinet?

The 60-gallon cabinet is narrower but considerably deeper. It measures 34 inches wide by 34 inches deep, compared with the 45-gallon model's 43-inch width and 18-inch depth. The 60-gallon shelves also support up to 167 lbs. each instead of 125 lbs. each.

How many shelves come with the cabinet?

Two adjustable galvanized-steel shelves are included. Each shelf supports up to 167 lbs. when properly installed and evenly loaded.

What determines the correct door type?

The required door configuration may be established by state or local code, the authority having jurisdiction, an insurer, or internal facility policy. Manual-close doors require user operation; automatic-close doors return to the closed position and include a heat-responsive link.

Does each color have different construction?

The five options use the same basic cabinet construction. Color is intended to help identify an application, but it does not confirm chemical compatibility. Always consult current Safety Data Sheets.

Which standards does FireKing identify for this product?

FireKing states that its flammable safety cabinets are verified to meet UL/ULC 1275, OSHA, NFPA, and ANSI standards. Final approval should come from the authority having jurisdiction because state, local, insurer, and facility requirements can be more restrictive.

Should the cabinet be connected to ventilation?

Do not alter or vent the cabinet unless the application specifically requires it and the design is approved. Follow FireKing instructions, applicable codes, and the direction of the authority having jurisdiction.

Is this appropriate for lithium-ion battery storage or charging?

No. A flammable-liquid safety cabinet is not a lithium-ion battery charging cabinet. Shop lithium battery storage cabinets for purpose-built battery products.

Will this protect files and paper records?

This cabinet is designed for compatible hazardous-liquid storage and spill containment, not document protection. For paper records and binders, browse our fireproof storage cabinets.

How is this 346-lb cabinet delivered?

It ships by LTL freight. Depending on the destination and selected service, delivery may be made to a loading dock, curb with liftgate, accessible lobby or garage, or an approved final location. Contact Advanced Filing Concepts before ordering if the route includes stairs, elevators, tight doors, restricted truck access, or other unusual conditions.
